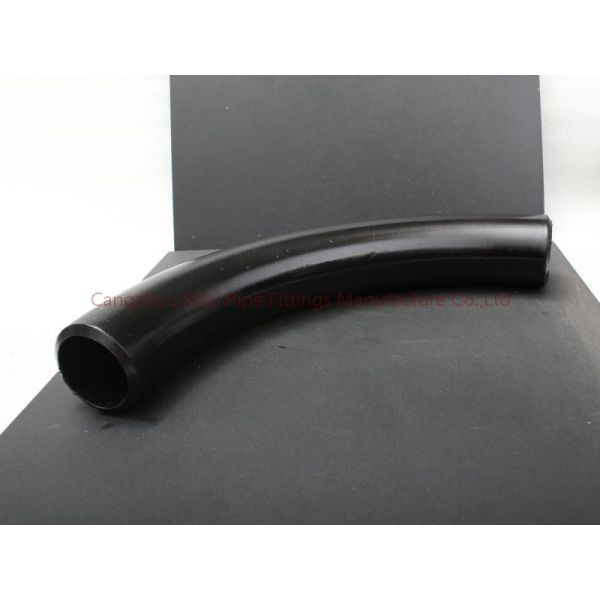

Mild Steel 3d Bend MS Bend 3D 5D 7D Bend Pipe Bend Tube Pipe Fitting
Description:
Steel pipe bend is very similar with elbows. They have same diameter range, wall thickness and end form. What’s the difference between them? It’s the radius. elbow has long radius (R=1.5D) and short radius ( R=1D) types, while bend radius is larger, such as 3D, 4D, 5D, 6D, 7D, 8D, 9D and 10D.
3D pipe bending is a pipe bend that the bend radius is 3 times the pipe outside diameter, 5D is 5 times the pipe putside diameter.The RADIUS of a 5D pipe bend is actually what is 5 times the nominal diameter. So if you had a 10″ diameter pipe, the radius of the centerline of the bend would be 50 inches.
Specifications:
BUTT-WELDING PIPE FITTINGS |
| | ASTM, A234WPB Q235,10#,DIN St37 St.35.8. |
| St45.8, ASTM A860 WPHY X42 X52 X60 X70 |
| | ASME/ANSI B16.9, B16.11, B16.28, JIS B2311, B2312
ASTM A403 MSS SP-43, SP-83, SP-97 |
| | 1.Tee (Straight and Reducing) 2.180 DEG Return |
| 3.Elbow (45/90/180 DEG) 4.Cap |
| 5. Reducer (Concentric and Eccentric) |
| | Seam Or Seamless |
| | 45 degree, 90 degree, 180 degree |
| | Black Paint, Anti Rust Oil |
| | SCH40, STD |
| XS,SCH80, XXS |
| | 1/2"-48"(Dn15-Dn1200) |
| | Butt Welding |
| | Equal, Reducing |
| | ISO9001 ISO14001 ISO45001 CE TUV |
| | Petrochemical & Gas, Power, Valves, Water system, Shipbuilding, Construction etc |
| | By Wooden Cases or pallets |
| | 35 days according to the quantities and specifications of each order |
FAQ:
Q1:What kind of information do you need for a quotation?
PS: Please provide us product type or standard code,material,size and quantity etc.;drawings or samples for customized ones.
Q2: Will you share our data with others?
PS: NO. We value our customers' privacy highly.
Q3: Do you provide samples?
PS: Yes, we can provide samples, some for free some not, and not cover freight cost.
Q4: How do you control the quality?
PS: We have a fully equiped profesional QC team and a advanced certificate process.
Q5: What's the lead time?
PS: Typically ship within 35 days after payment, depends on order sizes too. Customized products and out of stock ones varies by each order. We strive to satisfy every customer's shipping expectation.
Q6: What is your terms of payment ?
PS: 30% TT in advance,70% against copy of B/L.
